Profiles
This page provides tools to search, display and manage profiles.

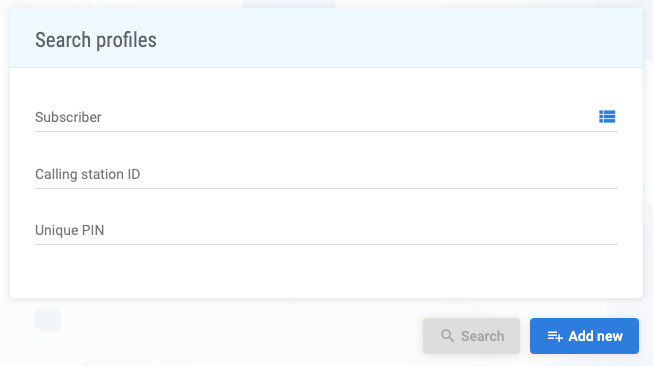

Search
Profiles can be searched by subscriber, calling station ID or unique PIN EQUALS, using search input fields.

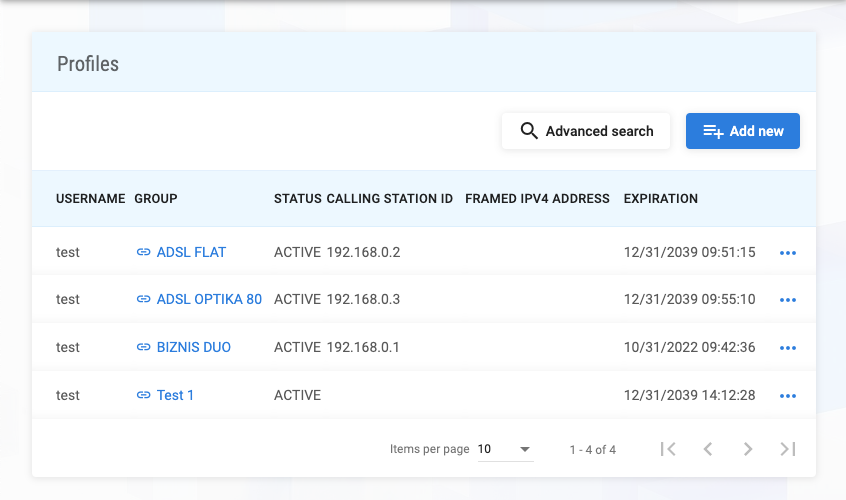

Data table
Profiles are displayed in a data table:
The following data table columns are available:
| Column | Description |
|---|---|
username | Username |
group | Group |
status | Status |
calling station id | Calling station ID |
framed ipv4 address | Framed IPv4 address |
expiration | Expiration date |
To manage a record, clicking on three dots at the end of a table row, shows a dropdown:

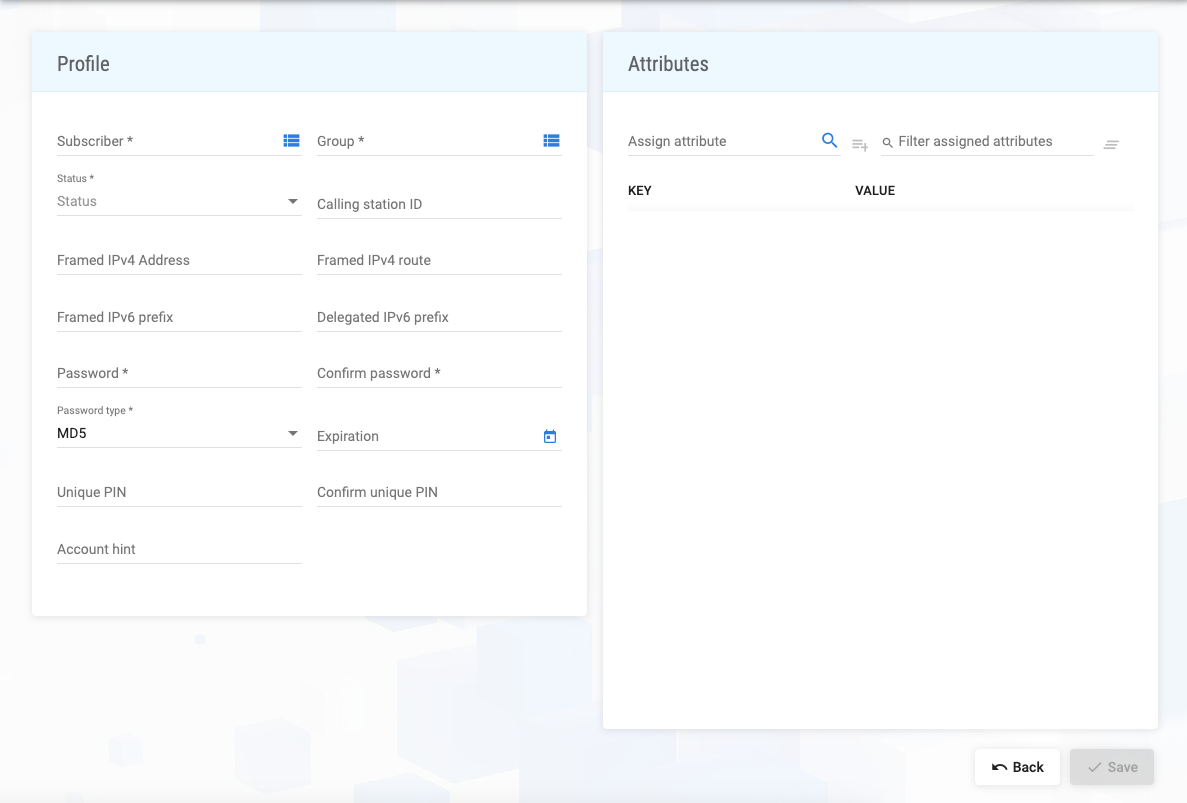

Form
Add new
A profile can be created using Add new button.
The following form fields are available:
| Field | Description | Required |
|---|---|---|
subscriber | Subscriber | ✓ |
group | Group | ✓ |
status | Status | ✓ |
calling station id | Calling station ID | |
framed ipv4 address | Framed IPv4 address | |
framed ipv4 route | Framed IPv4 route | |
framed ipv6 prefix | Framed IPv6 prefix | |
delegated ipv6 prefix | Delegated IPv6 prefix | |
password | Password | ✓ |
confirm password | Confirm password | ✓ |
password type | Password type | ✓ |
expiration | Expiration date | |
unique pin | Unique PIN | |
confirm unique pin | Confirm unique PIN | |
account hint | Account hint | |
attributes | Attributes |
Save button is enabled only if form data are valid.
Edit
To edit a record, clicking on Edit dropdown option shows the form to edit data.

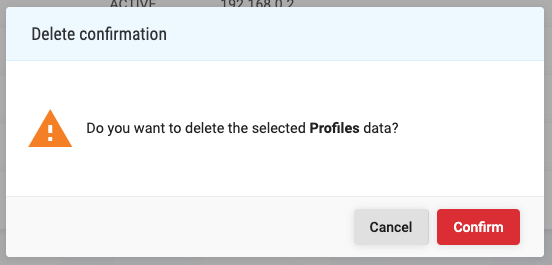

Delete
To delete a record, clicking on Delete dropdown option shows the confirmation dialog to delete data.
The data referenced by another entity cannot be deleted. Confirm button deletes the data.
Result
As a result of every successful action, the Information message box is presented, with adequate message.
On validation or constraints error, the Warning message box is presented, with adequate message.
On error, the Error message box is presented, with adequate message.
